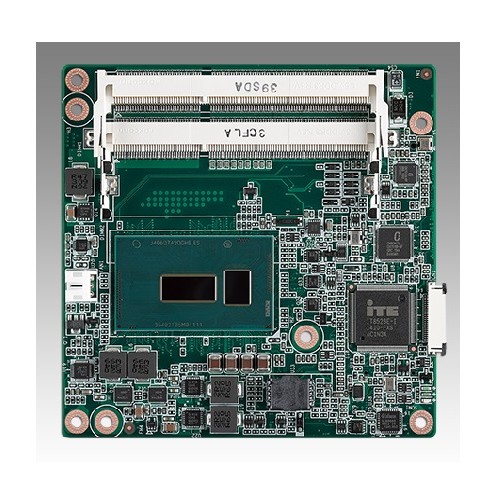

Type 6 - 높은 컴퓨팅 성능
5세대 인텔® 코어™ /셀러론 프로세서 U 시리즈 (SoC)
최대 16GB의 듀얼 채널 DDR3L 1600 SODIMM 소켓을 지원합니다.
3개의 독립 디스플레이 지원: VGA, LVDS, HDMI/디스플레이 포트/DVI
최대 4096 x 2304 (4K2K) @60Hz의 해상도를 지원합니다.
iManager, SUSIAccess 및 임베디드 소프트웨어 API 지원
ㅣ제품사양
<모바일 이용 시 좌우로 슬라이드해서 보세요>
제품 종류 | SOM-6896C3-U1A1E | SOM-6896C5-S8A1E | SOM-6896C7-U2A1E | SOM-6896CR-S9A1E | |
폼 팩터 | 폼 팩터 | COM Express Compact R2.1, Type 6 Pin-out | COM Express Compact R2.1, Type 6 Pin-out | COM Express Compact R2.1, Type 6 Pin-out | COM Express Compact R2.1, Type 6 Pin-out |
핀아웃 타입 | Type 6 | Type 6 | Type 6 | Type 6 | |
프로세서 | 컵+피치 | Intel i3-5010U | Intel i5-5350U | Intel i7-5650U | Celeron 3765U |
주파수 | 2.1 GHz | 1.8GHz | 2.2GHz | 1.9 GHz | |
최대 터보 주파수 | N/A | 2.9GHz | 3.1 GHz | N/A | |
코어 넘버 | 2 | 2 | 2 | 2 | |
스레드 | 4 | 4 | 4 | 4 | |
LLC | 3MB | 3MB | 4MB | 2MB | |
컵 TDP | 15W | 15W | 15W | 15W | |
바이오스 | AMI UEFI BIOS @ 128 Mb | AMI UEFI BIOS @ 128 Mb | AMI UEFI BIOS @ 128 Mb | AMI UEFI BIOS @ 128 Mb | |
메모리 | ECC 서포트 | N/A | N/A | N/A | N/A |
맥스.용량 | 16GB | 16GB | 16GB | 16GB | |
그래픽스 | 컨트롤러 | Intel HD graphics 5500 | Intel HD graphics 6000 | Intel HD graphics 6000 | Intel HD Graphics |
그래픽 메모리 | up to 1GB | up to 1GB | up to 1GB | up to 1GB | |
3D/하드웨어 가속화 | DX 11.1, OptionGL 4.0/4.2, OCL1.2, HW Decode/Encode for H.264/AVC, VC-1, SVC, MPEG2, Decode for VP8 | DX 11.1, OptionGL 4.0/4.2, OCL1.2, HW Decode/Encode for H.264/AVC, VC-1, SVC, MPEG2, Decode for VP8 | DX 11.1, OptionGL 4.0/4.2, OCL1.2, HW Decode/Encode for H.264/AVC, VC-1, SVC, MPEG2, Decode for VP8 | DX 11.1, OptionGL 4.0/4.2, OCL1.2, HW Decode/Encode for H.264/AVC, VC-1, SVC, MPEG2, Decode for VP8 | |
맥스.주파수 | 0.9GHz | 1 GHz | 1 GHz | 850MHz | |
디스플레이 | DDI (HDMI/DVI/디스플레이포트) | DDI 1: support HDMI (1.4a specification compliant with 3D) resolutions up to 4096 x 2304, DisplayPort resolutions up to 3840 x 2160, DVI resolutions up to 1920 x 1200 (DDI 2: Optional) | DDI 1: support HDMI (1.4a specification compliant with 3D) resolutions up to 4096 x 2304, DisplayPort resolutions up to 3840 x 2160, DVI resolutions up to 1920 x 1200 (DDI 2: Optional) | DDI 1: support HDMI (1.4a specification compliant with 3D) resolutions up to 4096 x 2304, DisplayPort resolutions up to 3840 x 2160, DVI resolutions up to 1920 x 1200 (DDI 2: Optional) | DDI 1: support HDMI (1.4a specification compliant with 3D) resolutions up to 4096 x 2304, DisplayPort resolutions up to 3840 x 2160, DVI resolutions up to 1920 x 1200 (DDI 2: Optional) |
듀얼 디스플레이 | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | |
트리플 디스플레이 | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | |
VGA | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 | |
확장 | 오디오 인터페이스 | HD Audio | HD Audio | HD Audio | HD Audio |
LPC | Yes (24MHz) | Yes (24MHz) | Yes (24MHz) | Yes (24MHz) | |
PCI 익스프레스 x 1 | 4 PCIex1 | 4 PCIex1 | 4 PCIex1 | 4 PCIex1 | |
PCI 익스프레스 x 16 | 1 PCIex4 while support 3 PCIex1 | 1 PCIex4 while support 3 PCIex1 | 1 PCIex4 while support 3 PCIex1 | 1 PCIex4 while support 3 PCIex1 | |
시리얼 버스 | I2 C 버스 | Yes | Yes | Yes | Yes |
중소기업청 | Yes | Yes | Yes | Yes | |
이더넷 | 컨트롤러 | Intel i218LM | Intel i218LM | Intel i218LM | Intel i218LM |
스피드 | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps | |
I/O | SATA | 4 Ports, Support Gen3 (6Gb/s) and Gen2 (3Gb/s), RAID 0, 1, 5, 10 | 4 Ports, Support Gen3 (6Gb/s) and Gen2 (3Gb/s), RAID 0, 1, 5, 10 | 4 Ports, Support Gen3 (6Gb/s) and Gen2 (3Gb/s), RAID 0, 1, 5, 10 | 4 Ports, Support Gen3 (6Gb/s) and Gen2 (3Gb/s), RAID 0, 1, 5, 10 |
SPI 버스 | for BIOS only | for BIOS only | for BIOS only | for BIOS only | |
USB3.0 | 2 | 2 | 2 | 2 | |
USB2.0 | 8 | 8 | 8 | 8 | |
GPIO | 8-bit GPIO | 8-bit GPIO | 8-bit GPIO | 8-bit GPIO | |
워치독 타이머 | 65536 level, 0 ~ 65535 sec | 65536 level, 0 ~ 65535 sec | 65536 level, 0 ~ 65535 sec | 65536 level, 0 ~ 65535 sec | |
컴 포트 | 2 (2-wire) | 2 (2-wire) | 2 (2-wire) | 2 (2-wire) | |
익스프레스 카드 | yes | yes | yes | yes | |
스마트 팬 | 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board | 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board | 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board | 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board | |
TPM | Optional | Optional | Optional | Optional | |
파워 | 전원 유형 | AT/ ATX | AT/ ATX | AT/ ATX | AT/ ATX |
전원 공급 장치 전압 | Vin: 4.75(5-5%) ~ 20V(19+5%), VSB: 5V±5%, RTC Battery: 2.0-3.3V | Vin: 4.75(5-5%) ~ 20V(19+5%), VSB: 5V±5%, RTC Battery: 2.0-3.3V | Vin: +8.5(9V-5%) ~ +20V(19V+5%), VSB: 5V±5%, RTC Battery: 2.0 ~ 3.3V | Vin: +8.5(9V-5%) ~ +20V(19V+5%), VSB: 5V±5%, RTC Battery: 2.0 ~ 3.3V | |
소비 전력 (최대) | +12 V @ 1.5A (i3-5010U) | - | - | - | |
소비 전력 (유휴) | +12 V @ 0.388A (i3-5010U) | - | - | - | |
환경 | 작동 온도 | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
습도 | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing | |
진동 저항성 | 3.5 Grms | 3.5 Grms | 3.5 Grms | 3.5 Grms | |
보관 온도 | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) | |
기계식 | 치수 | 95 x 95 mm (3.74" x 3.74") | 95 x 95 mm (3.74" x 3.74") | 95 x 95 mm (3.74" x 3.74") | 95 x 95 mm (3.74" x 3.74") |
ㅣ제품사양
<모바일 이용 시 좌우로 슬라이드해서 보세요>
제품 종류 | SOM-6896C3-U1A1E | SOM-6896C5-S8A1E | SOM-6896C7-U2A1E | SOM-6896CR-S9A1E | |
폼 팩터 | 폼 팩터 | COM Express Compact R2.1, Type 6 Pin-out | COM Express Compact R2.1, Type 6 Pin-out | COM Express Compact R2.1, Type 6 Pin-out | COM Express Compact R2.1, Type 6 Pin-out |
핀아웃 타입 | Type 6 | Type 6 | Type 6 | Type 6 | |
프로세서 | 컵+피치 | Intel i3-5010U | Intel i5-5350U | Intel i7-5650U | Celeron 3765U |
주파수 | 2.1 GHz | 1.8GHz | 2.2GHz | 1.9 GHz | |
최대 터보 주파수 | N/A | 2.9GHz | 3.1 GHz | N/A | |
코어 넘버 | 2 | 2 | 2 | 2 | |
스레드 | 4 | 4 | 4 | 4 | |
LLC | 3MB | 3MB | 4MB | 2MB | |
컵 TDP | 15W | 15W | 15W | 15W | |
바이오스 | AMI UEFI BIOS @ 128 Mb | AMI UEFI BIOS @ 128 Mb | AMI UEFI BIOS @ 128 Mb | AMI UEFI BIOS @ 128 Mb | |
메모리 | ECC 서포트 | N/A | N/A | N/A | N/A |
맥스.용량 | 16GB | 16GB | 16GB | 16GB | |
그래픽스 | 컨트롤러 | Intel HD graphics 5500 | Intel HD graphics 6000 | Intel HD graphics 6000 | Intel HD Graphics |
그래픽 메모리 | up to 1GB | up to 1GB | up to 1GB | up to 1GB | |
3D/하드웨어 가속화 | DX 11.1, OptionGL 4.0/4.2, OCL1.2, HW Decode/Encode for H.264/AVC, VC-1, SVC, MPEG2, Decode for VP8 | DX 11.1, OptionGL 4.0/4.2, OCL1.2, HW Decode/Encode for H.264/AVC, VC-1, SVC, MPEG2, Decode for VP8 | DX 11.1, OptionGL 4.0/4.2, OCL1.2, HW Decode/Encode for H.264/AVC, VC-1, SVC, MPEG2, Decode for VP8 | DX 11.1, OptionGL 4.0/4.2, OCL1.2, HW Decode/Encode for H.264/AVC, VC-1, SVC, MPEG2, Decode for VP8 | |
맥스.주파수 | 0.9GHz | 1 GHz | 1 GHz | 850MHz | |
디스플레이 | DDI (HDMI/DVI/디스플레이포트) | DDI 1: support HDMI (1.4a specification compliant with 3D) resolutions up to 4096 x 2304, DisplayPort resolutions up to 3840 x 2160, DVI resolutions up to 1920 x 1200 (DDI 2: Optional) | DDI 1: support HDMI (1.4a specification compliant with 3D) resolutions up to 4096 x 2304, DisplayPort resolutions up to 3840 x 2160, DVI resolutions up to 1920 x 1200 (DDI 2: Optional) | DDI 1: support HDMI (1.4a specification compliant with 3D) resolutions up to 4096 x 2304, DisplayPort resolutions up to 3840 x 2160, DVI resolutions up to 1920 x 1200 (DDI 2: Optional) | DDI 1: support HDMI (1.4a specification compliant with 3D) resolutions up to 4096 x 2304, DisplayPort resolutions up to 3840 x 2160, DVI resolutions up to 1920 x 1200 (DDI 2: Optional) |
듀얼 디스플레이 | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | |
트리플 디스플레이 | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | Combinations of VGA / LVDS / HDMI / DVI / DisplayPort | |
VGA | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 | |
확장 | 오디오 인터페이스 | HD Audio | HD Audio | HD Audio | HD Audio |
LPC | Yes (24MHz) | Yes (24MHz) | Yes (24MHz) | Yes (24MHz) | |
PCI 익스프레스 x 1 | 4 PCIex1 | 4 PCIex1 | 4 PCIex1 | 4 PCIex1 | |
PCI 익스프레스 x 16 | 1 PCIex4 while support 3 PCIex1 | 1 PCIex4 while support 3 PCIex1 | 1 PCIex4 while support 3 PCIex1 | 1 PCIex4 while support 3 PCIex1 | |
시리얼 버스 | I2 C 버스 | Yes | Yes | Yes | Yes |
중소기업청 | Yes | Yes | Yes | Yes | |
이더넷 | 컨트롤러 | Intel i218LM | Intel i218LM | Intel i218LM | Intel i218LM |
스피드 | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps | |
I/O | SATA | 4 Ports, Support Gen3 (6Gb/s) and Gen2 (3Gb/s), RAID 0, 1, 5, 10 | 4 Ports, Support Gen3 (6Gb/s) and Gen2 (3Gb/s), RAID 0, 1, 5, 10 | 4 Ports, Support Gen3 (6Gb/s) and Gen2 (3Gb/s), RAID 0, 1, 5, 10 | 4 Ports, Support Gen3 (6Gb/s) and Gen2 (3Gb/s), RAID 0, 1, 5, 10 |
SPI 버스 | for BIOS only | for BIOS only | for BIOS only | for BIOS only | |
USB3.0 | 2 | 2 | 2 | 2 | |
USB2.0 | 8 | 8 | 8 | 8 | |
GPIO | 8-bit GPIO | 8-bit GPIO | 8-bit GPIO | 8-bit GPIO | |
워치독 타이머 | 65536 level, 0 ~ 65535 sec | 65536 level, 0 ~ 65535 sec | 65536 level, 0 ~ 65535 sec | 65536 level, 0 ~ 65535 sec | |
컴 포트 | 2 (2-wire) | 2 (2-wire) | 2 (2-wire) | 2 (2-wire) | |
익스프레스 카드 | yes | yes | yes | yes | |
스마트 팬 | 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board | 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board | 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board | 2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board | |
TPM | Optional | Optional | Optional | Optional | |
파워 | 전원 유형 | AT/ ATX | AT/ ATX | AT/ ATX | AT/ ATX |
전원 공급 장치 전압 | Vin: 4.75(5-5%) ~ 20V(19+5%), VSB: 5V±5%, RTC Battery: 2.0-3.3V | Vin: 4.75(5-5%) ~ 20V(19+5%), VSB: 5V±5%, RTC Battery: 2.0-3.3V | Vin: +8.5(9V-5%) ~ +20V(19V+5%), VSB: 5V±5%, RTC Battery: 2.0 ~ 3.3V | Vin: +8.5(9V-5%) ~ +20V(19V+5%), VSB: 5V±5%, RTC Battery: 2.0 ~ 3.3V | |
소비 전력 (최대) | +12 V @ 1.5A (i3-5010U) | - | - | - | |
소비 전력 (유휴) | +12 V @ 0.388A (i3-5010U) | - | - | - | |
환경 | 작동 온도 | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
습도 | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing | Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing | |
진동 저항성 | 3.5 Grms | 3.5 Grms | 3.5 Grms | 3.5 Grms | |
보관 온도 | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) | |
기계식 | 치수 | 95 x 95 mm (3.74" x 3.74") | 95 x 95 mm (3.74" x 3.74") | 95 x 95 mm (3.74" x 3.74") | 95 x 95 mm (3.74" x 3.74") |
